In-Line Schlieren System

The in-line schlieren system is a type of highly integrated schleiren system. Different from Z-type schlieren, Both the light source and knife edge are installed in the syste,

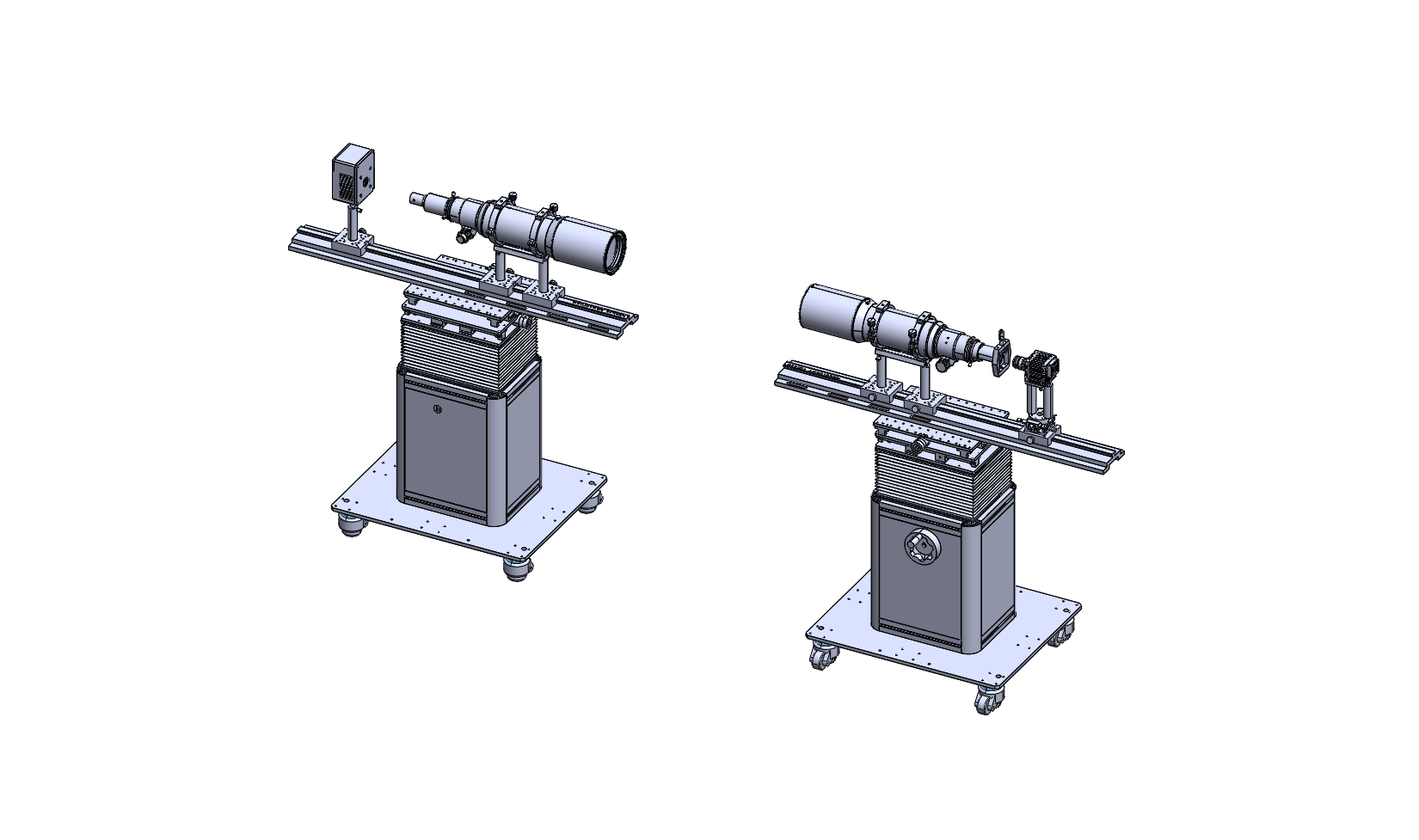

The in-line system has following the dimensions：

Schlieren lens diameter: 96mm (575mm focal length) or 60mm (375mm focal length)

The in-line system has the advantage of simple light path and easy to set up. Benefitted from its short focal length, a higher magnification fator can be achieved in comparison to the Z-type system. The 60 system can achieve magnification factor very close to 1.
