Vertical Translation Stages
Regular price
£160.00
Tax included.
Shipping calculated at checkout.
- Mechanically Compatible with Linear Translation and Rotation Stages
- Fine Micrometer Movement
- Option of Single and Two Cross-Roller Bearings

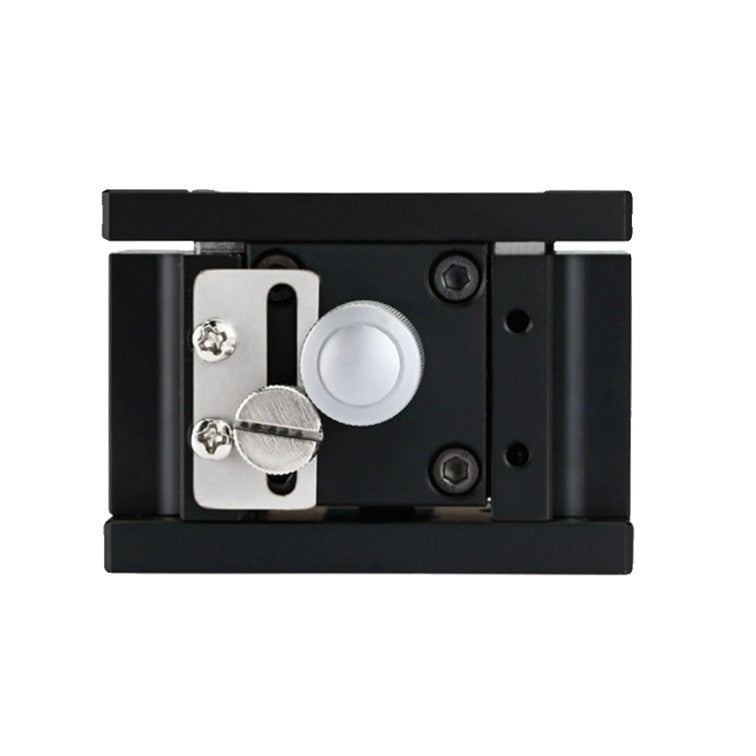

- Locking Screw on Stages
Product Parameters

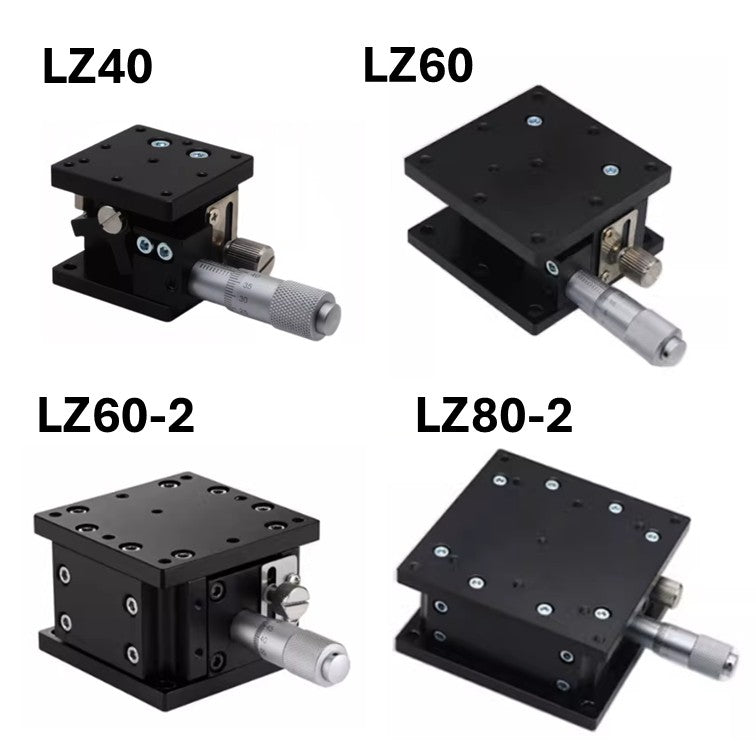

LZ40 | LZ60 | LZ60-2 | LZ80-2 | |
Number of Roller Bearings | 1 | 1 | 2 | 2 |
Translation Range | 10 mm | 10 mm | 10 mm | 10 mm |
Top Surface Height Range | 35-45 mm | 35-45 mm | 42-52 mm | 40-50 mm |
Load | 2 kg | 3 kg | 6 kg | 6 kg |
Weight | 0.17 kg | 0.27 kg | 0.39 kg | 0.57 kg |
Product Dimensions

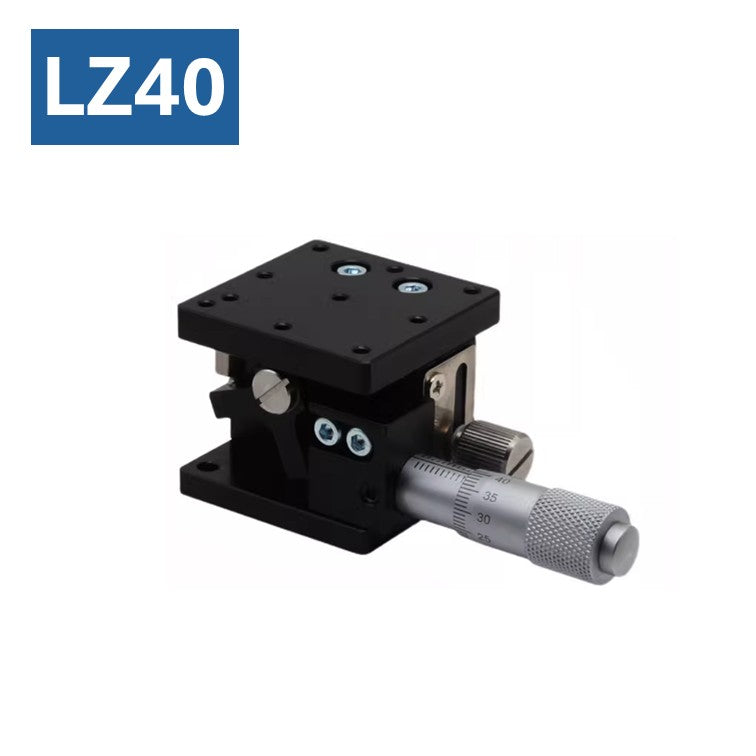

- LZ-40 Stage

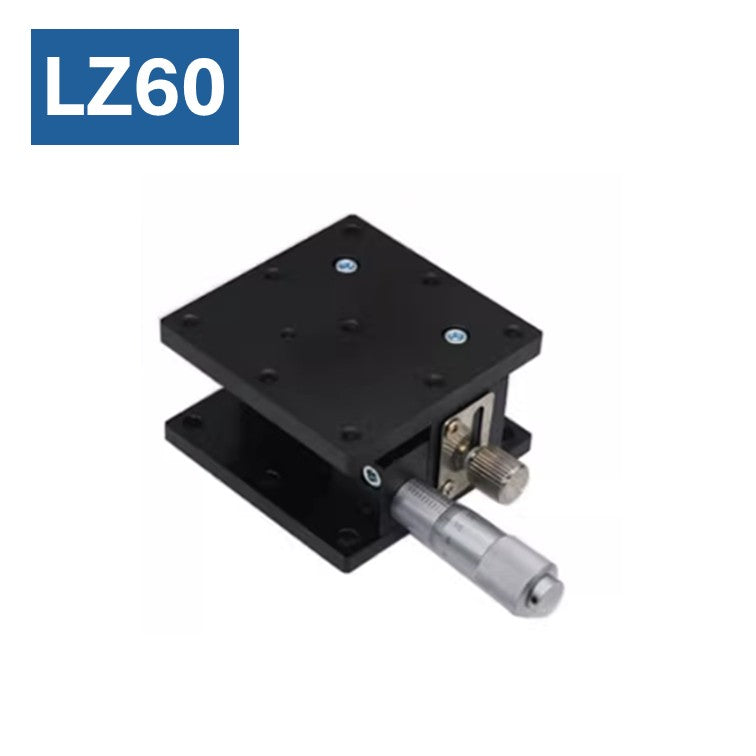

- LZ-60 Stage

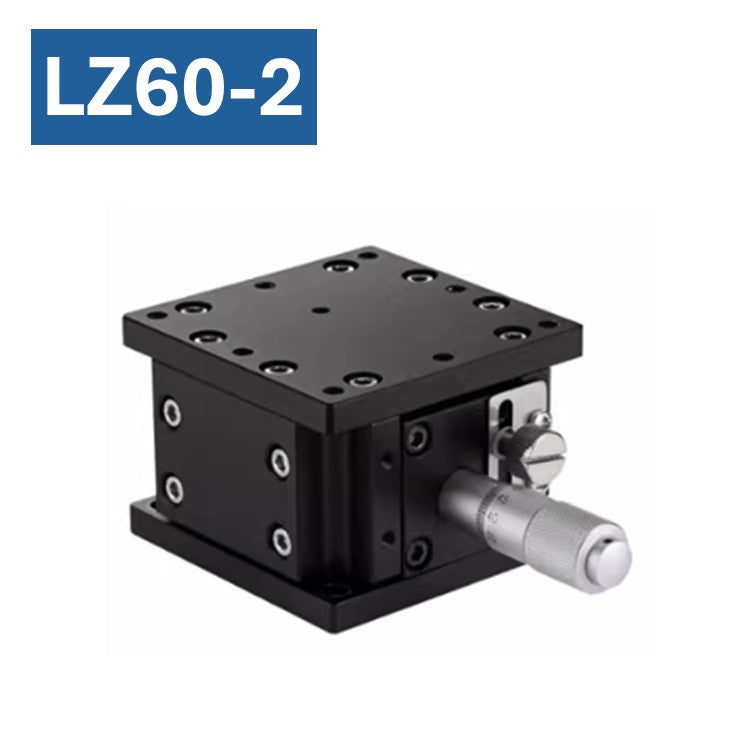

- LZ60-2 Stage

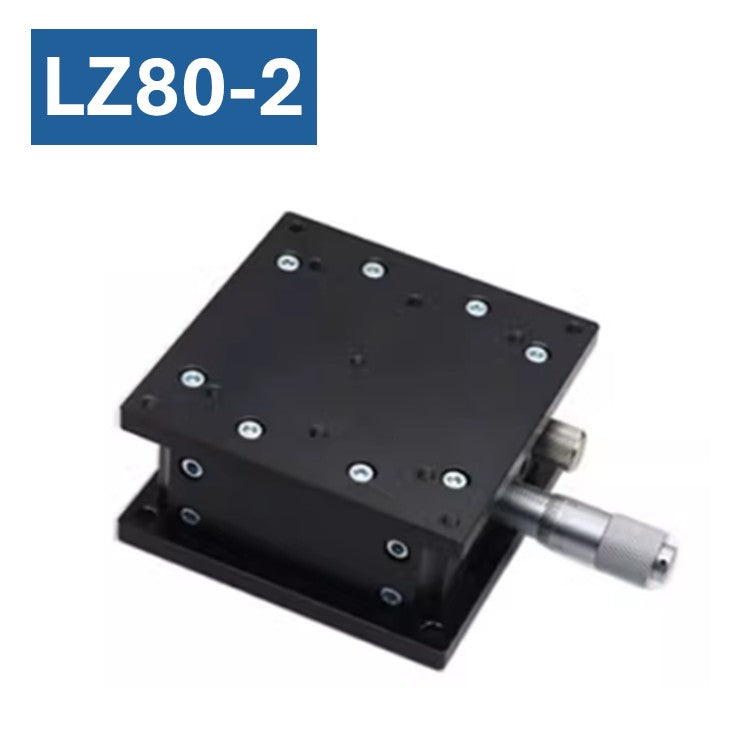

- LZ80-2 Stage
